Android 8.1 Octa-Core 2.0GHz 2G/4G RAM 16G/64G ROM Handheld
Computer Rugged PDA Micro SD Card Up to 128GB

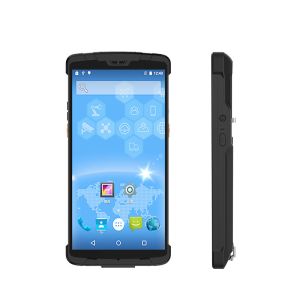

SD60 is an Android rugged mobile computer. With its powerful processor,
stable wireless connections and comprehensive data capture options,
you can find this easy-to-deploy device a valuable helper to
increase working efficiency and productivity in various meter
reading operations.
Products Introduction
SD60 is an upgraded version of the SD55LG and it’s the highest
configuration for logistics and express, warehouse, inventory and
retail management.
with 4GB+ 64GB memory, It has a greater advantage in data
processing, The glove operation mode is more suitable for the
industry operating habits, removable 6000mAh large-capacity battery
is more stable and durable.
Prducts Features:
1. Especially designed for Logistics and Express, warehouse and
inventory and retail management.
2. Fast operation system Android 8.1 and High-performance Octa Core
2.0GHz, 4GB+ 64GB memory, It has a greater advantage in data
processing.
3. 6 inch FHD high-definition screen, 2160*1080 resolution brings
the ultimate visual experience, it is rugged and robust, it is
readable and visible under sunlight.
4. 6000mAh large capacity rechargeable Li-ion Battery, it could be
disassembled and replaced. It support PE fast charging. |
Specifications
| SD60 Basic Parameters |
| OS | Android 8.1 |
| CPU | Octa-Core 2.0GHz |
| RAM | 2GB/4GB |
| ROM | 16GB/64GB |
| Expansion | Micro SD (TF) card slot up to 128GB |
| Keypad | 2 volume buttons, 2 function buttons(1 left and 1 right), 1 power
button |
| Notification | Sound/vibration/LED prompt |
| Audio | Front dual stereo speakers Volume 90db±3db (test distance 10cm) |
| Dimentions | 160*80*15.8mm |
| Weight( with battery) | 300g |
| Camera |
| Camera | Rear camera 13MP AF ; High brightness LED flash, Front Camera 5MP
FF |
| Focus mode | Autofocus ; Fixed focus |
| Display |
| Display | 6.0 Inch IPS |
| Resolution | 2160*1080 WUXGA |
| Touch Panel | 5-point capacitive touch screen |
| Power |
| Battery | 6000mAh |
| Charging | PE fast charging, full charging time<4 hours |
| Interface | 2 Nano SIM cards
1 micro SD card slot up to 128GB
USB-Type C, support fast charging, OTG
Support fast charging5V/9A 1.67,
charging and bottom USB connector |
| Communication |
| Bluetooth | BT4.1 BLE |
| Wi-fi | IEEE 802.11 a/b/g/n 2.4G 5G dual frequency |
| WWAN | FDD-LTE B1/B3/B5/B7/B8
TDD-LTE B38/B39/B40/B41
TDSCDMA B34/B39
WCDMA B1/B2/B5/B8
GSM B2/B3/B5/B8
CDMA1x/CDMA2000 BC0/BC1 |
| GPS Position Module | GPS+BD+GLONASS |
| Performance |
| Operation Temperature | -20℃ ~55℃ |
| Storage Temperature | -30℃ ~+70℃ |
| Humidity | 5%~95%(No condensation) |
| Sealing | IP65 |
| Drop Test | 6 sides can withstand the impact of 1.2 meters drop to the concrete
floor |
| ESD | ±15kV Air Discharge, ±8kV Contact Discharge |
| Certificate | CCC,SRRC,CTA,CE,ROHS,FCC,BIS |
| Extensibility |
| NFC | Supporting agreement: ISO14443A/B, ISO15693, NFC reading distance:
0~5cm |
| PSAM | Support |
Barcode scanning
Support code system | CM60, Support code system:EAN13
EAN8, UPCA, UPCE, Code 128, Code 39
Codabar, UCC/EAN128, RSS,ITF, ITF14, ITF6
ISSN, ISBN, Standard 25, Matrix 25
Industrial 25,Plessey, MSI Plessey, Code 11
Code 93, PDF417, QR Code, DataMatrix
AZTEC, Hanxin Code, Maxicode, Micro QR
Micro PDF417, Composite |
| Sensor | Geomagnetism, acceleration, optical distance |
| Explosion-proof (optional) | Sign of explosion-proof:Ex ib IIC T4 GB
Certificate number:CCRI 19.2161 |
Speedata Service
As a listed company from china manufacturer, we support you:
Completely Free SDK and technical support for you.
ODM/OEM customization services according to your needs.
13 months warranty for your devices and other parts. and 6 months
for the batteries. Exend warranty,it'll cost 0.5% for each per
year.
Free maintenance of the devices and part of accessories replacement
in the warranty .if out of the warranty, you'll have to pay the
basic cost for them.
FAQ
Question 1: What's your MOQ?
The MOQ of barcode scanner handheld PDA is 1 piece.
Question 2: How long is the delivery time?
The delivery time of barcode scanner goods is different from
quantities:
If 1~100 pcs, It's about 5--10 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days.
Question 3: Would you like to supply 1 sample for testing?
Yes, Of course. We can provide 1 sample Terminal PDA for your
testing.
Question 4: What's the total price for 1 sample?
As a manufacturer of barcode scanner terminal PDA,the more you buy,
the cheaper it'll be.
The sample price is a little bit higher than the common wholesale
price excluding the freight fee.
Question 5: Are you a manufacturer of Handheld PDA?
Yes, we are a R&D orientation China Listed Company, mainly
producing industrial PDA Terminal Hardware and as a software
solutions supplier with over 8 years' OEM/ODM experience. We are
also cooperating with Foxconn Factory.
Question 6: What kind of services do you support ?
We provide you Free SDK and Technical Support for your Barcode
Scanner.
We also provide ODM/OEM Customization Services based to your
demands.
We support 13 months Warranty for all the device and 6 months for
the batteries. Exend warranty, it costs 10% at the first year, and
15% for the second year.
Question 7: What's for payment term and delivery term ?
It's generally 30%-100% TT in advance for all orders. Meanwhile,
Paypal or West Union is acceptable.
FOB Shenzhen as Trade Term.
Question 8: Who are your customers?
Our products have been sold to worldwide,especially market in
South/North America, Europe, Asia, Africa Mid-east, etc.
The market share is increasing quickly every year and we get more
and more positive feedbacks from our customers.
